Printer Friendly

This is a continuation of our Loading OpenStreetMap data in PostGIS. In this tutorial we will build a tile cache of the Massachusetts data we loaded in Part 1 and then render it in OpenLayers. We will be using Mapnik toolkit to do this.

Some PostGIS gotchas before we start-- that you may or may not need to address

In PostgreSQL database -- had to add these 2 columns because it was looking for it and didn't exist in my dump:

ALTER TABLE planet_osm_polygon ADD COLUMN "addr:housename" text;
ALTER TABLE planet_osm_point ADD COLUMN "addr:housename" text;

The Mapnik scripts use the PostGIS deprecated functions Extent,AsBinary, and SetSRID to name a few which were removed in PostGIS 2.0. You will sadly need to run the legacy.sql for now to get back those functions if you are testing with PostGIS 2.0. The legacy.sql is installed in the contrib/share/postgis-2.0 folder.

UPDATE: Mapnik trunk, aka Mapnik 2.0 with planned release in Summer 2011 no longer uses deprecated PostGIS functions and has also been revised to support Python 2.5->3.2

Getting Mapnik up

  1. Install Python 2.5 or 2.6 -- NOTE: MapNik to our knowledge does not currently work with newer versions of Python.
  2. If you are on Windows - install the HOTOSM (if you didn't already in the Loading OpenStreetMap tutorial). If you are on another OS, refer to Mapnik installation instructions.
    Note: HOTOSM users - when HOTOSM installs, it sets the PythonPath variable under Control Panel->System->Advanced -> Environment Variables to ;C:\Program Files\HOTOSM\python\2.5\site-packages. This will not work if you are running python 2.6. Change the 2.5 to 2.6. To test your install, open a command line and cd to
    cd C:\Program Files\HOTOSM\demo\python
    If all is good, you should see a bunch of .png files generated in that folder.

Building the Tiles

You may also want to take a look at if some of what we say doesn't make sense to you.

  1. Once you have Mapnik installed, you want to download the python scripts for generating OpenStreetMap tiles. which you can get from openstreetmap subversion repository and then copy these into a folder say osm_mapnik.

    For ease of use, we have exported these out of the subversion repository and made the latest available (as of May 18th,2011) -- at

    Note: If you have an svn client you can download the folder yourself with command svn co

  2. Next do the following at a command prompt: NOTE to windows users -- if you don't have wget or tar tools, you can manually download these files and put them in your osm_mapnik folder and extract them with 7-zip into folder world_boundaries
    cd osm_mapnik #this is the folder you extracted the scripts
    tar xvzf world_boundaries-spherical.tgz
    tar xvjf processed_p.tar.bz2 -C world_boundaries
    tar xjf shoreline_300.tar.bz2 -C world_boundaries
    unzip -d world_boundaries
    unzip -d world_boundaries

Figure out extent to build for

Before we begin, we need to figure out the extent of our tiles. We do that with this SQL Statement (sadly there is data in the osm ma dataset that far exceeds the extents of Massachusetts), so I opted to use a US states table I had lying around instead of ST_Extent of any of the osm tables:

SELECT ST_Extent(the_geom) As wgs_84, ST_Extent(ST_Transform(the_geom,900913)) as web_merc
FROM tiger.states WHERE stusps = 'MA';
BOX(-73.508142 41.187053,-69.858861 42.88679) --wgs_84
BOX(-8182888.93659964 5011826.70961612,-7776652.83391808 5265667.90278576) --web_merc
Generate the osm styling xml and prepare tile directory

A little bit about the osm.xml. This file contains all the styling rules for generating the tiles and serves as a template for building your final styling .xml. It defines the icons to use, how to draw the lines and so forth. If you are not happy with the default mapnik styling and want to highlight certain features differently, you can manually edit this xml file and resave it under say osm_custom.xml before you start to build you run the and use that where we are using osm.xml.

Note: If you are on windows and want to put the files in non C drive -- do a mkdir D:/osm_tiles or whatever folder you want

mkdir /osm_tiles osm.xml /osm_tiles/ma_osm.xml --dbname osm --user postgres --port 5432  --extent -8182889,5011827,-7776653,5265668 --accept-none

Test rendering

Next we edit the file and change the ll to -73.508142,41.187053,-69.858861,42.88679 and then at command line:

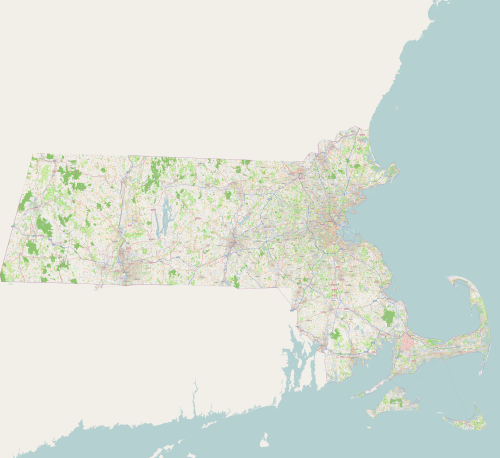

Confirm that the image.png generated looks like Massachusetts. It will be very high-res around 8 MB and look something like:
Massachusetts Mapnik

Generate Massachusetts Tiles

Next resave the as Edit and the render_tiles section way at the bottom,change to:

	bbox = (-73.508142,41.187053,-69.858861,42.88679)
    render_tiles(bbox, mapfile, tile_dir, 6, 8, "Massachusetts")

    minZoom = 10
    maxZoom = 17
    bbox = (-73.508142,41.187053,-69.858861,42.88679)
    render_tiles(bbox, mapfile, tile_dir, minZoom, maxZoom)
Windows commands
set MAPNIK_MAP_FILE=/osm_tiles/ma_osm.xml
set MAPNIK_TILE_DIR=/osm_tiles
set HOME=/osm_tiles

If you just want to generate for Boston

  • Resave as and change the tiles section to:

    	bbox = (-71.2,42.23,-70.99, 42.4)
    render_tiles(bbox, mapfile, tile_dir, 10, 17, "Boston")
  • set MAPNIK_MAP_FILE=/osm_boston_tiles/ma_osm.xml
    set MAPNIK_TILE_DIR=/osm_boston_tiles
    set HOME=/osm_boston_tiles

In Part 3 of our series, we will show you how to use your own custom tiles in OpenLayers.

Post Comments About Part 2: Building Tiles with PostGIS OpenStreetMap data and Mapnik: Your Own OpenStreetMap
Part 1: Loading OpenStreetMap data into PostGIS: An Almost Idiot's Guide more ...
Using OpenLayers: Part 2 more ...
Using OpenLayers: Part 1 more ... download
PostGIS, pgRouting, and PostgreSQL Tutorials
Part 1: Getting Started With PostGIS: An almost Idiot's Guide (PostGIS 2.2) more ...
pgRouting: Loading OpenStreetMap with Osm2Po and route querying more ...
Part 1: Getting Started With PostGIS: An almost Idiot's Guide (PostGIS 2.0) more ...
OSCON 2009: Tips and Tricks for Writing PostGIS Spatial Queries more ...
PGCon2009: PostGIS 1.4, PostgreSQL 8.4 Spatial Analysis Queries, Building Geometries, Open Jump more ...
PLR Part 3: PL/R and Geospatial Data Abstraction Library (GDAL) RGDAL more ...
PostGIS Nearest Neighbor: A Generic Solution - Much Faster than Previous Solution more ...
Solving the Nearest Neighbor Problem in PostGIS more ...
PLR Part 2: PL/R and PostGIS more ...
PLR Part 1: Up and Running with PL/R (PLR) in PostgreSQL: An almost Idiot's Guide more ...
Part 2 - PostGIS and SharpMap in ASP.NET 2.0 using VB.NET: Displaying the Maps more ... download
Part 1 - PostGIS and SharpMap in ASP.NET 2.0 using VB.NET: Compiling SharpMap with PostGIS more ...
Part 3: PostGIS Loading Data from Non-Spatial Sources more ...
Part 2: Introduction to Spatial Queries and SFSQL with PostGIS more ...
Miscellaneous Tutorials/Cheatsheets/Examples
SpatiaLite Tutorials
Boston External Map Examples
SQL Server 2008 Tutorials
UMN Mapserver Tutorials
General Commentary
12/18/2012 4:39:56 PMElijah RobisonA few extra tips based on what I encountered, now that it's almost 19 months later. (wow time flies) :!

First I needed to INSERT the following columns, in addition to those noted in the tutorial:

ALTER TABLE planet_osm_point ADD COLUMN "generator:source" text;

ALTER TABLE planet_osm_polygon ADD COLUMN "generator:source" text;

Next, I had to grab the latest .py generation files. If you want to play it safe, use an SVN client to pull them from the address in the tutorial. Alternatively you can grab them at the following address, but they'll gradually go stale after today:

Last, the two NaturalEarth downloads have moved as follows (the http:// stuff appearing twice is _correct_, it won't work if it's not doubled-up like you see here):

And when you unzip them into the world_boundaries folder mentioned in the tutorial, make sure they are named as follows, (if they are otherwise, will complain):

10/10/2012 12:51:34 PMalinewer in webmaping
10/26/2011 6:35:40 PMManoloHi,

thanks for this tutorial about OpenStreetMap it is very useful.

I'm lost in the step for obtain the extern values.
I'm using the spain.osm download from the same website of massachusetts.osm.bz2 file.

I don't know where to find something similar to obtain the value for Spain country.

I try to follow keeping the extern value by default, and when I try to run the I always get on the screen:
proj_init_error: failed to initialize projection with +init=epgs:4326.

I'm not sure if this error can be fixed setting the right value of extern or is another issue.

Could you clarify me about these issues?
Thanks in advance,
